VARNA XTREME
On-line UPS double conversion high frequency from 3750VA to 6250VA
Description

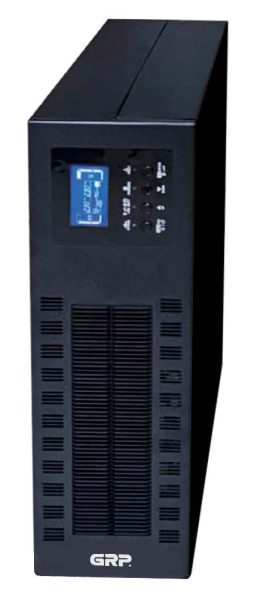

The Varna Xtreme RT UPS available in either Rack or Tower, include active input PFC rectier (Power Factor Corrector)
and make use of the advantages of PWM technology with IGTBs to obtain equipment with high technical features.
They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing
its service life. They are ideal for supplying critical systems of 3750VA to 6250VA that require a high reliability and
quality supply with low operating and maintenance costs.
Data is provided locally through mimic panel with LEDs and LCD display. The communications interface, together
with its powerful software, allow users to monitor the status of the unit and provides information on its
environment.
> On-line UPS double conversion
> Output power factor 0.8
> 19” Rack-mounting/tower design
> Microprocessor digital control technology
> Power: 3750VA to 6250VA
> Visual alarms (led and display) and audible in the case of
mains failure
> Easy-shift LCD display with information about status of UPS
> Wide input voltage range
> Battery mode start up without mains line
> Protections against overloads, shortcircuit and low battery
voltage
> Battery test function
> Re-start function
> RS232/USB + software included for software monitoring
> Parallelable up to 9 UPSs, with common battery
> 60A super AC charger (Max)
> 48VDC, Only 4pcs of batteries
> High input power factor0.98
> 93% high eficiency
> SNMP and Dry contact cards optional
